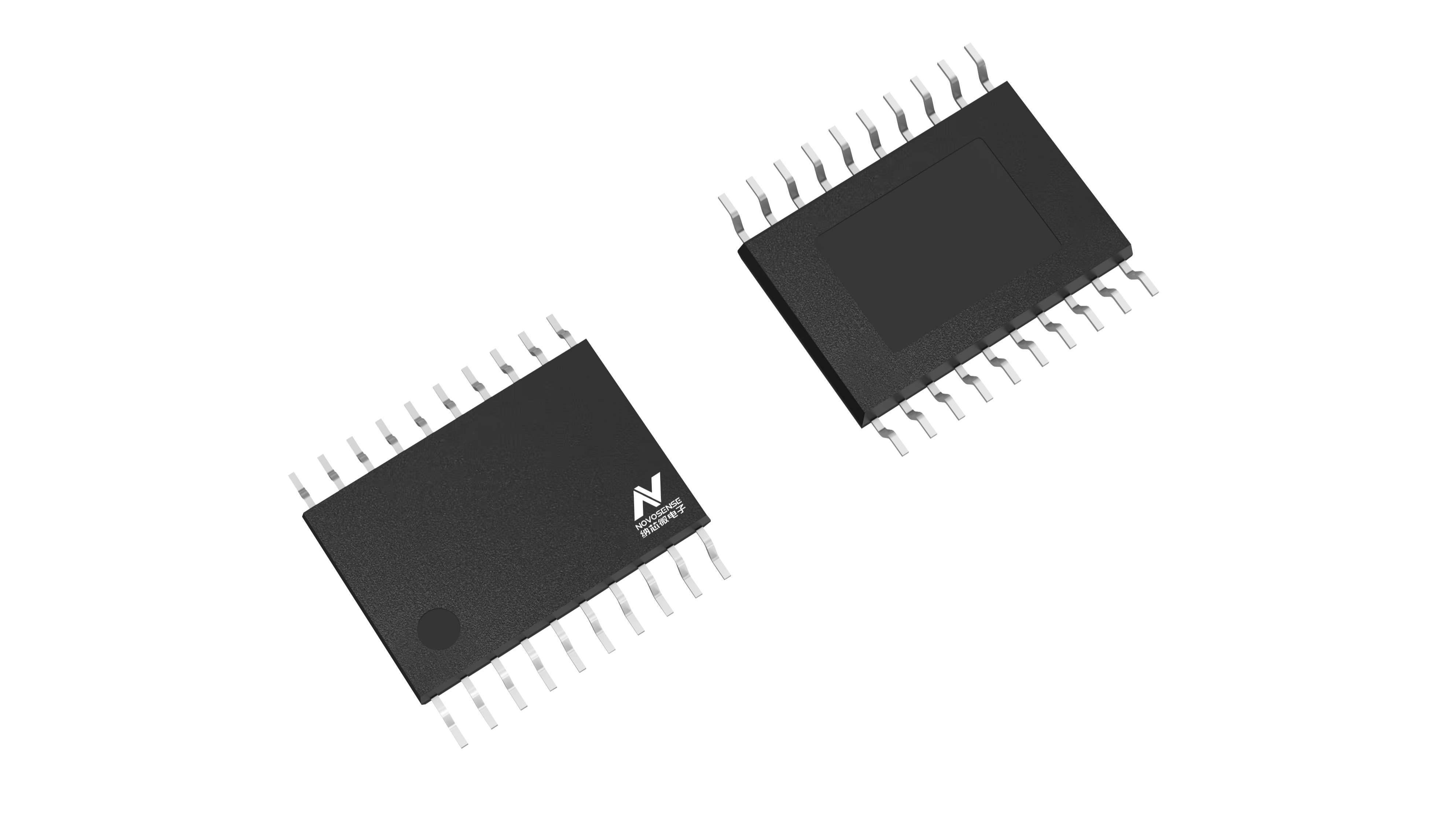

55V 260mΩ 4-channel Low Side Driver

NSD5604E is a 4-channel low-side driver IC. The product integrates 4-channel low-side NMOSFET to drive resistive, capacitive or inductive loads. The 4 channels can be turned on at the same time and each channel can support a load current of greater than 500mA. Each channel of the product supports independent overcurrent protection and the overcurrent points can be configured through external resistors. The IC also integrates active clamp and freewheeling diodes, by working with external TVS, different current attenuation modes including slow attenuation and fast shutdown can be realized for inductive load.

Product Features

• Wide operating voltage range: 8V – 50V (withstand voltage of 55V)

• On-resistance of 260m Ω

• Peak current 3.0A

• Support fast pulse frequency

• LDO supports transmission voltage of 5V-20mA

• Integrated active clamp and freewheeling diode

• Configurable current limit point and overcurrent protection

• Undervoltage protection

• Operating temperature: -40°C~125°C

Application

• Industrial automation

• Industrial machinery

• Digital machine tool

• General resistive/capacitive/inductive loads

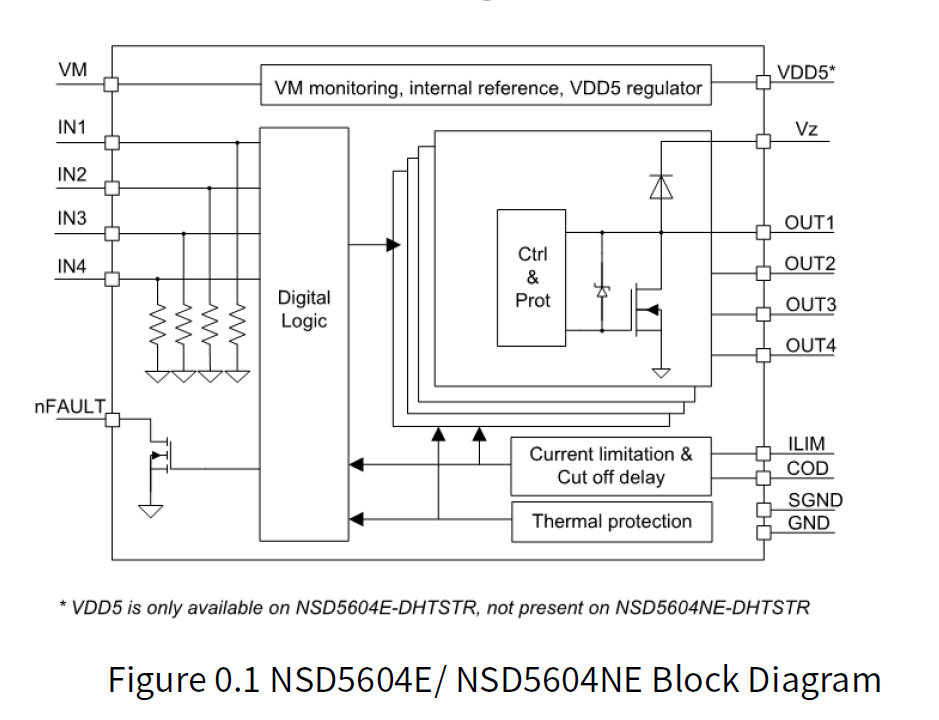

Functional Block Diagram


For more product information, please contact us.
