High Reliability Reinforced Isolated Amplifier

NSI1300-Q1 is a high-performance isolated amplifier with output separated from input based on the NOVOSENSE capacitive isolation technology. The device has a linear differential input signal range of ±50mV (±64mV full-scale) or ±250mV (±320mV full-scale). The differential input is ideally suited to shunt resistor-based current sensing in high voltage applications where isolation is required. The device has a fixed gain (8.2 or 41) and provides a differential analog output. The low offset and gain drift ensure the accuracy over the entire temperature range. High common-mode transient immunity ensures that the device is able to provide accurate and reliable measurements even in the presence of high-power switching such as in motor control applications. The fail-safe functions including input common-mode overvoltage detection and missing VDD1 detection simplify system-level design and diagnostics.

Product Features

• Up to 5700Vrms Insulation voltage

• ±50mV or ±250mV linear Input Voltage Range

• Fixed Gain: 8.2 or 41

• Low Offset Error and Drift:

   NSI1300D25: ±0.2mV (Max), -2~4μV/℃ (Max)

   NSI1300D05: ±0.1mV (Max), -0.8~1μV/℃ (Max)

• Low Gain Error and Drift: ±0.3% (Max), ±50ppm/℃ (Max)

• Low Nonlinearity and Drift: ±0.03% (Max), ±1ppm/℃ (Typ)

• SNR: 86dB (Typ, BW=10kHz), 72dB (Typ, BW=100kHz)

• Wide bandwidth: 310kHz (Typ)

• High CMTI: 150kV/μs (Typ)

• System-Level Diagnostic Features:

   VDD1 monitoring

   Input common-mode overvoltage detection

• Operation Temperature: -40℃ ~125℃

• AEC-Q100 qualified for automotive applications

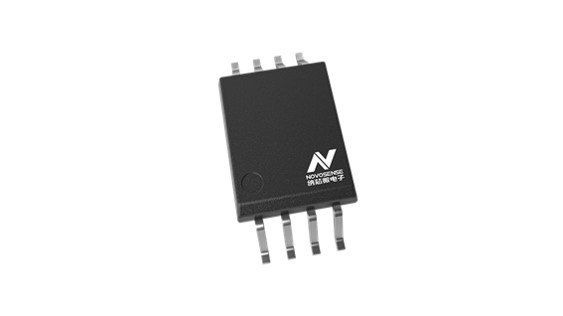

• RoHS-Compliant Packages: SOP8(300mil)

Safety Certificate

• UL recognition per UL1577

• CQC certification per GB4943.1

• CSA component notice 5A

• DIN EN IEC 60747-17 (VDE 0884-17)

Application

• Shunt Current Monitoring

• AC Motor Controls

• Uninterruptible Power Suppliers

• Automotive Onboard Chargers

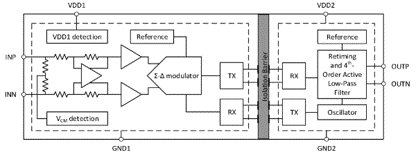

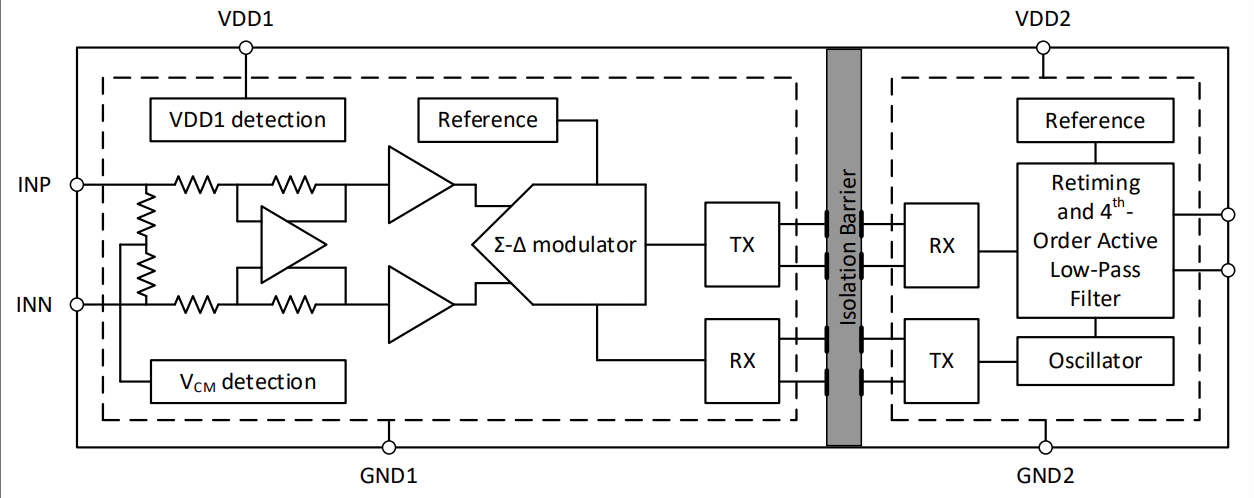

Functional Block Diagram
