The NSI3612D is a high performance isolated amplifier with integrated isolated power supply that accept fully-differential input of ±1V. The integrated isolated power supply enables single-power operation on the low side of the device without the need for a separate isolated power supply for the high side, effectively reducing the board area. The high input impedance of NSI3612D makes it highly suitable for connection to high-voltage resistive dividers or other voltage signal sources with high output resistance. The device has a fixed gain of 2 and provides a differential analog output. The low offset and gain drift ensure the accuracy over the entire temperature range. High common-mode transient immunity ensures that the device is able to provide accurate and reliable measurements even in the presence of high-power switching such as in motor control applications. The integrated isolated power supply detection and the open-drain diagnosis output simplify system-level design and diagnostics.
Product Features
• Up to 5000Vrms Insulation voltage
• ±1V linear Input Voltage Range
• Low Offset Error and Drift: ±0.5mV (Max), ±10μV/°C (Max)
• Low Gain Error and Drift: ±0.25% (Max), ±45ppm/°C (Max)
• Low Nonlinearity and Drift: ±0.04% (Max), ±1ppm/°C (Typ)
• SNR: 83dB (Typ, BW=10kHz), 71dB (Typ, BW=100kHz)
• Wide bandwidth: 340kHz (Typ)
• High CMTI: 150kV/μs (Typ)
• System-Level Diagnostic Features: integrated isolated power supply detection
• Operation Temperature: -40°C~125°C
• RoHS-Compliant Packages: SOP16(300mil)
Safety Certificate
• UL recognition: 5000Vrms for 1 minute per UL1577
• CQC certification per GB4943.1
• CSA component notice 5A
• DIN EN IEC 60747-17 (VDE 0884-17)
Application
• Server Power Supply Units
• Uninterruptible Power Suppliers
• Energy Storage Systems
• Solar Inverters
• Charging Piles
• Motor Drives

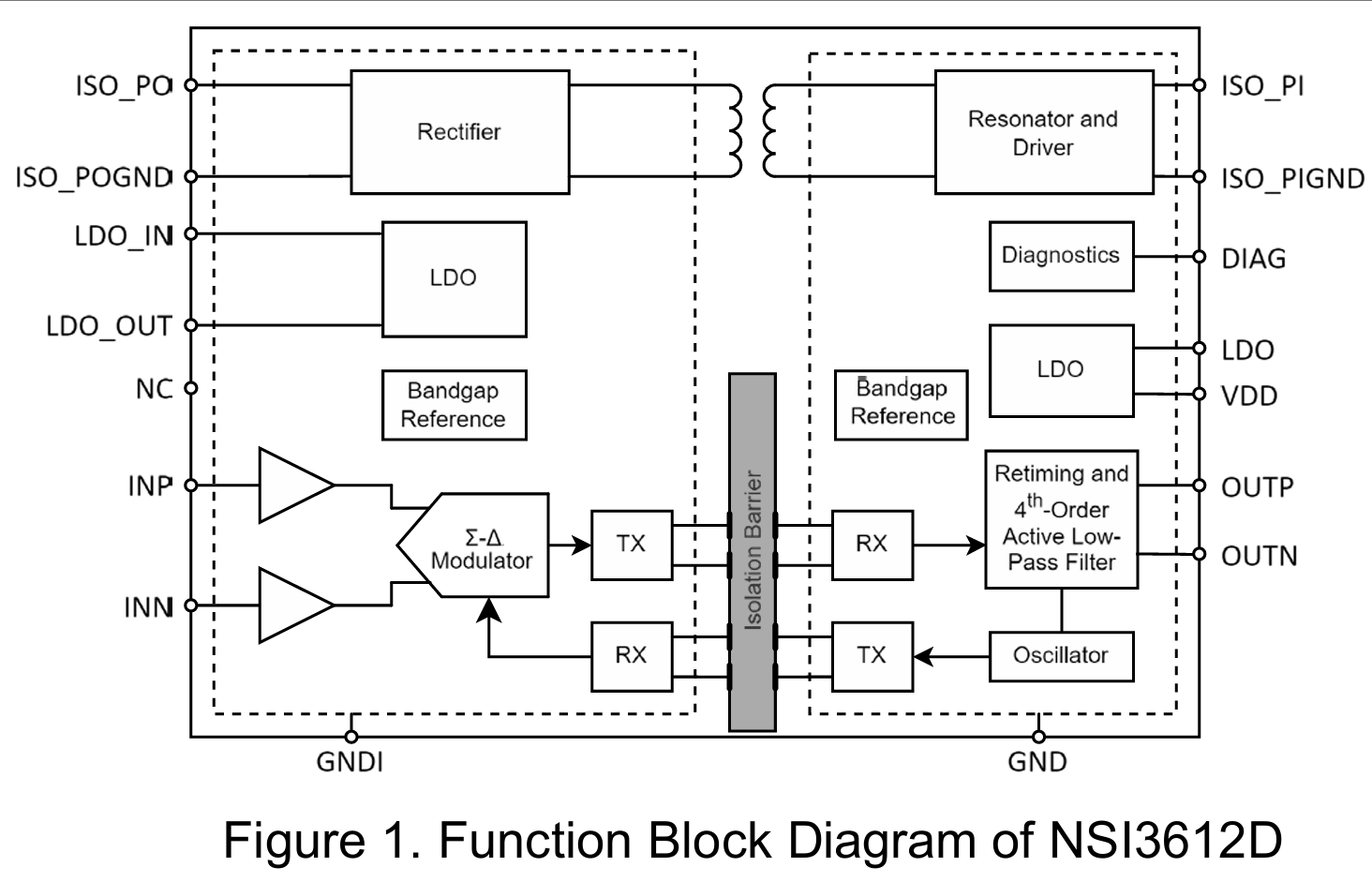

Functional Block Diagram
