NSM1071 Unipolar Hall Switch

NSM1071 is a 3-wire fixed sensitivity Hall switch, which are industrial-grade magnetic sensors based on the planar Hall-effect to support high-precision, contactless digital position measurement within an ambient temperature range of -40°C to 125°C.

The low power version of the NSM1071 with 20Hz sampling frequency has an operating current as low as 1.5μA at the common supply voltage of 3.3V, making it suitable for battery-powered applications such as IOT devices.

The NSM107X series consists of 2 product models, namely NSM1071 (unipolar Hall switch) and NSM1072 (omnipolar Hall switch), which allow users to select different switching points, power consumption modes, output interfaces, package forms, etc.


Product Features

•  Operating ambient temperature: -40°C~125°C

•  Operating voltage range: 1.65~5.5V

•  ESD(HBM): ±4kV

•  Optional parameters:

    Different operate/release points

    Power consumption modes:regular power consumption version, low power consumption version (20Hz)

    Output interface: Open-drain, Push-pull



Application

•  Industrial and consumer applications

•  Proximity switch

•  Wake-up switch

•  Speed detection

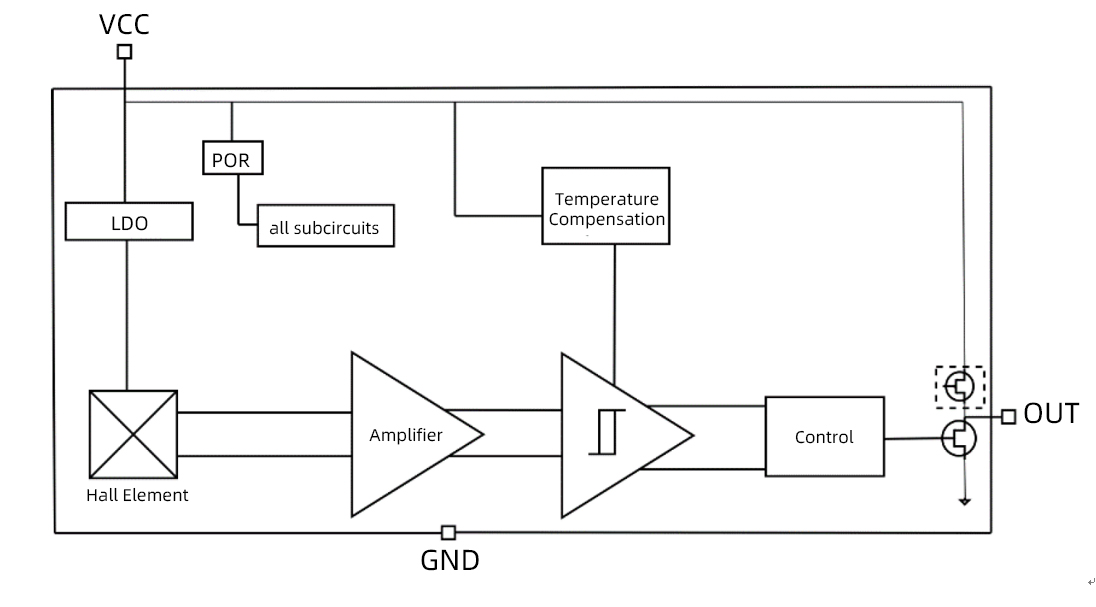

Functional Block Diagram


For more product information, please contact us.
