Cost-effective and highly reliable 2-channel digital isolators

NSi822xC is a cost-effective and highly reliable dual-channel digital isolator. This series is UL1577 certified and supports a wide range of isolation voltages (3.75kVrms, 5kVrms) with low power consumption, high EMI and low radiation. With data rates up to 150Mbps and common-mode transient immunity (CMTI) up to 250kV/us, the devices are configured with a default output level in the event of an input dropout, and offer digital channel direction configuration. The wide supply voltage range of this family of devices allows for direct connection to most digital interfaces and easy level shifting. Excellent system-level EMC performance enhances reliability and stability in use.

Product Features

  • Isolation Withstanding Voltage 3750Vrms, 5000Vrms

  • VDE Enhanced Isolation Certification

  • Data rate DC to 150Mbps

  • Supply voltage range: 2.5~5.5V

  • High CMTI:250kV/μs

  • Chip-level ESD: HBM:±8kV

  • Enhanced system level ESD, EFT, surge resistance

  • Low propagation delay <15ns typical

  • Low power consumption:1.5mA/ch(1 Mbps)

  • Operating temperature: -40~125°C

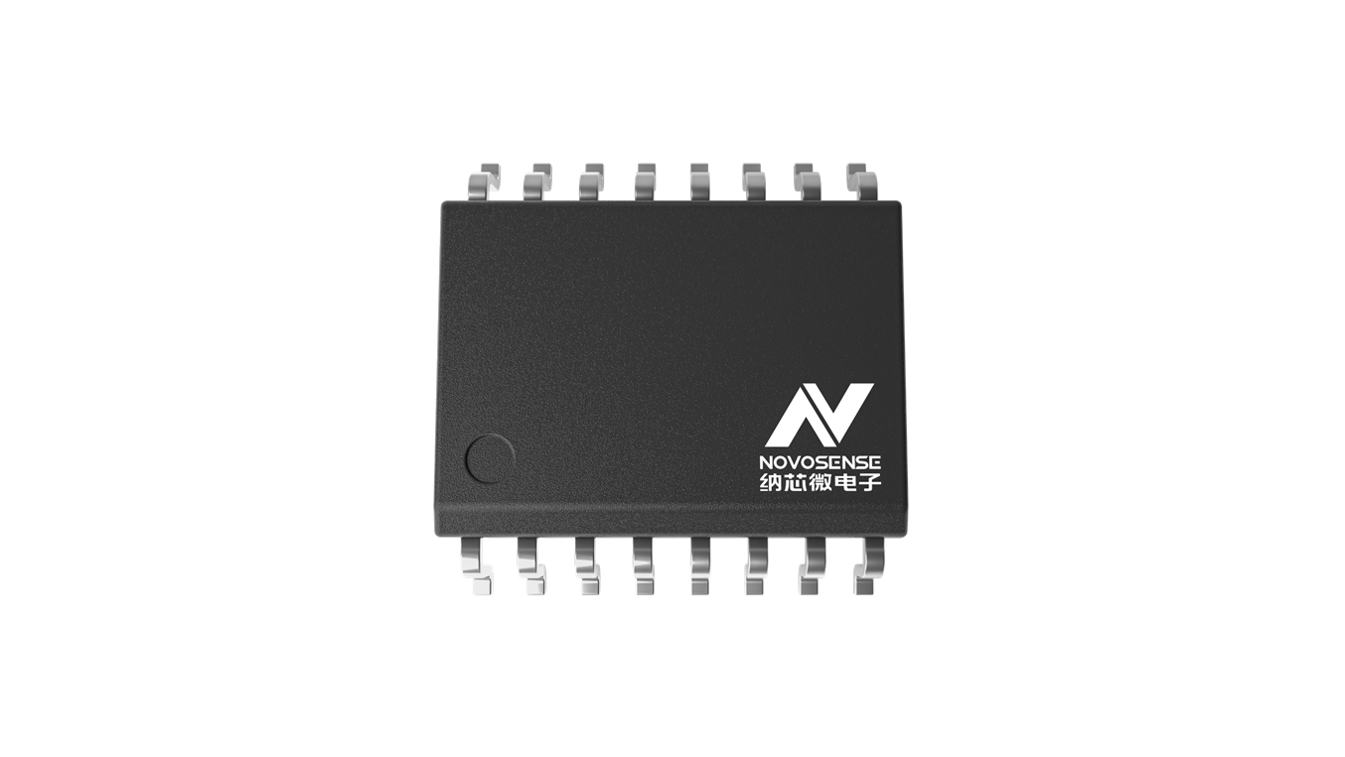

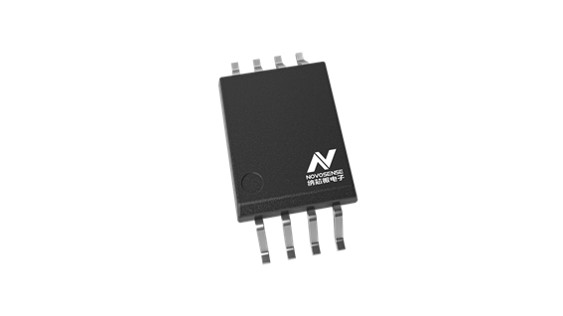

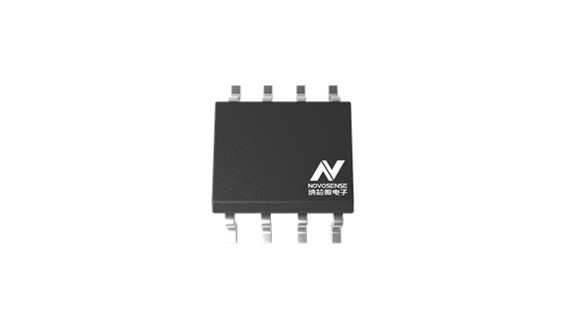

  • RoHS compliant package: SOP8, SOW8, SOW16

Safety Certificate

  • UL1577 Certification: 1 minute 3.75kVrms/5kVrms

  • CQC Certification: Compliance with GB4943.1-2011

  • CSA Certification: Components comply with 5A

  • VDE Certification: DIN V VDE V 0884-11:2017-1

Application

  • Industrial Automation Systems

  • Isolated SPI, RS232, RS485

  • General Purpose Multi-Channel Isolation

  • Motor Control

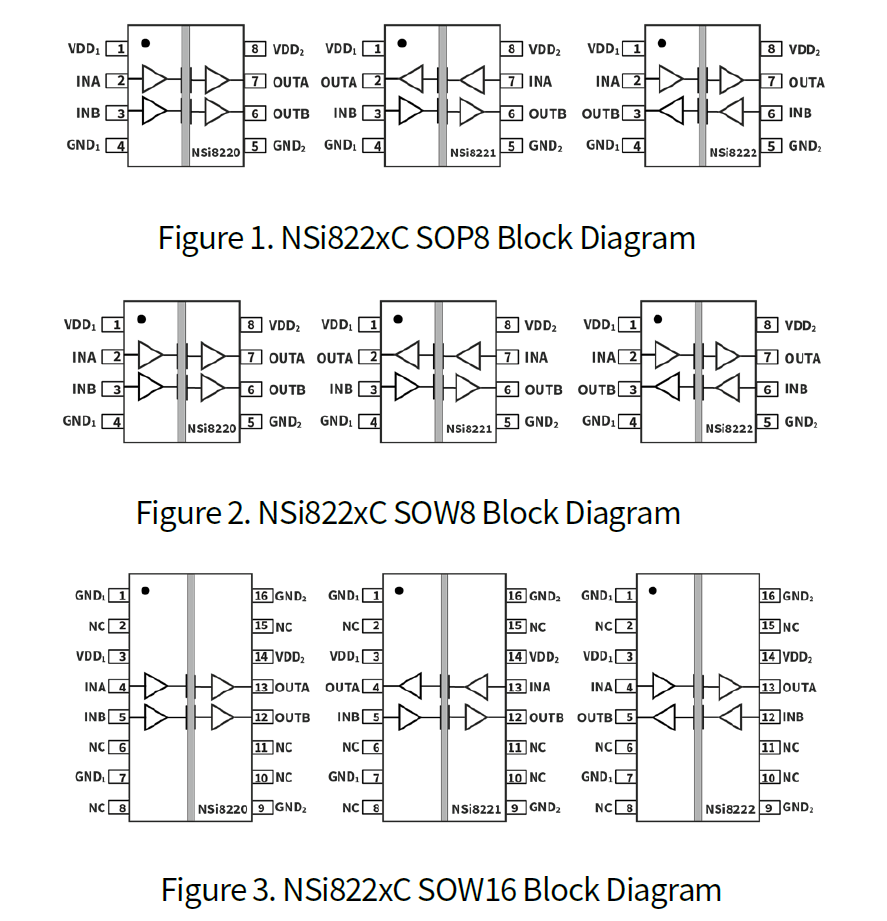

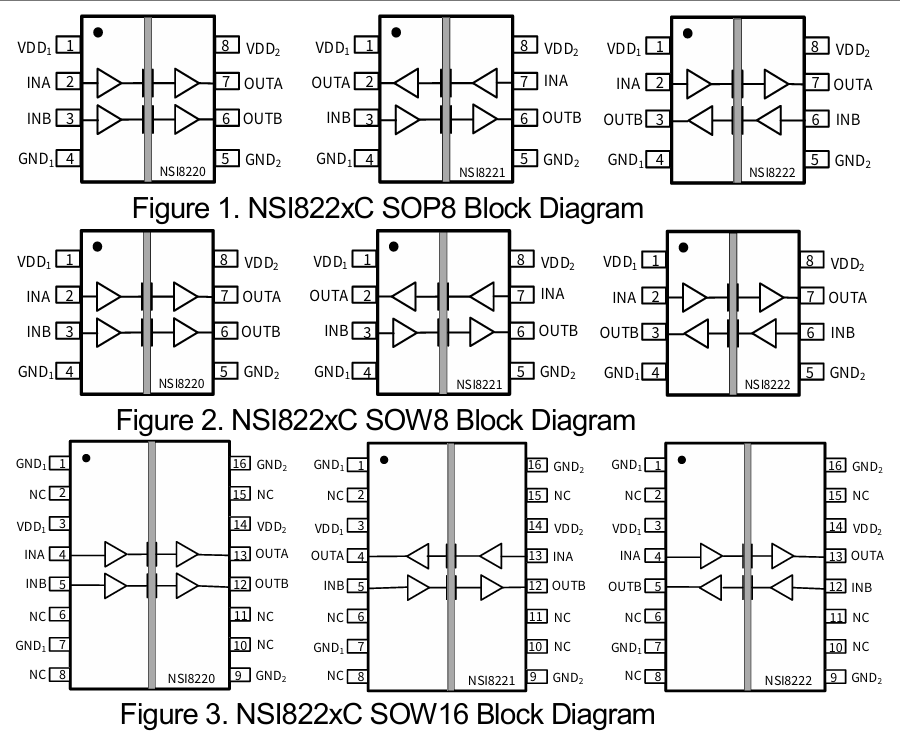

Functional Block Diagram
