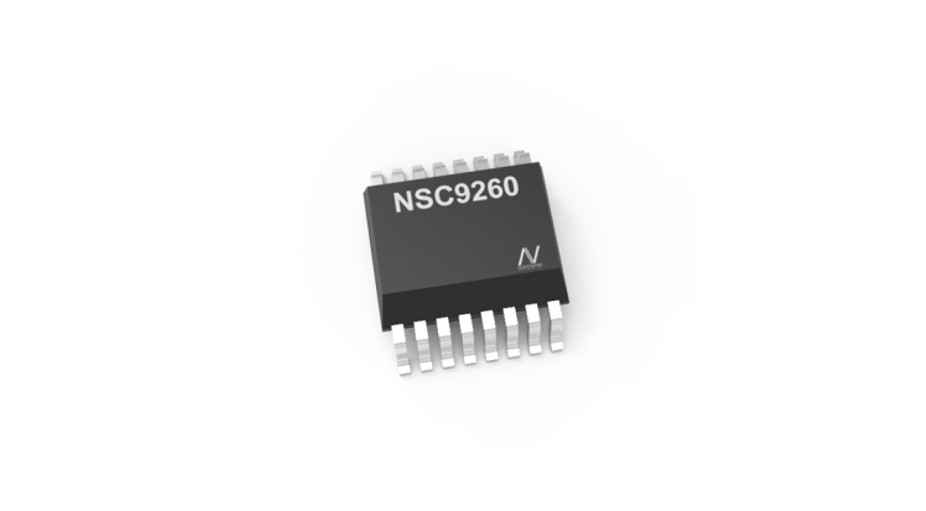

Signal Conditioning Chip for Capacitive Automobile Pressure Sensor

NSC9260 (X) is an EMC enhanced AECQ100 compliant high integration chip for signal conditioning of capacitive automotive pressure sensors. The NSC9260 (X) adopts a capacitance voltage conversion circuit and a 24-bit ADC to form the main signal measurement channel, and a 24-bit ADC to form the auxiliary temperature measurement channel. With built-in digital processing engine, the NSC9260X supports second-order temperature drift calibration and the highest third-order nonlinear calibration for sensor zero temperature and sensitivity of the sensor. The calibration accuracy can be up to 0.1%, and its calibration coefficients are stored in a set of programmable EEPROMs. NSC9260 (X) supports over-voltage and reverse-voltage protection, analog voltage output and PWM output, which is mainly used in automotive capacitive pressure sensors for measuring pressure values above 1MPa.

Product Features

•  Support -24V to 28V over voltage and reverse voltage protection for automotive sensor applications

•  It integrates C/V capacitive voltage conversion circuit and 24-bit high-precision ADC, which can easily measure capacitance of capacitive pressure sensor, calculate and convert it to pressure.

•  Built-in digital processor-based sensor calibration logic, supporting post-customer calibration, up to third-order nonlinear calibration and second-order temperature sensitivity and offset calibration

•  Calibration data can be stored in EEPROM, multiple times programmable

•  Ratio-metric or absolute voltage output, supporting PWM output

•  Enhanced EMC performance

•  Proprietary OWI communication mode, supporting calibration after sensor assembly

•  Operating temperature range: -40℃ ~ 150℃, compatible with AECQ100 standard


•  Auto capacitive pressure sensor module (automotive air conditioning pressure, brake pressure, etc.)

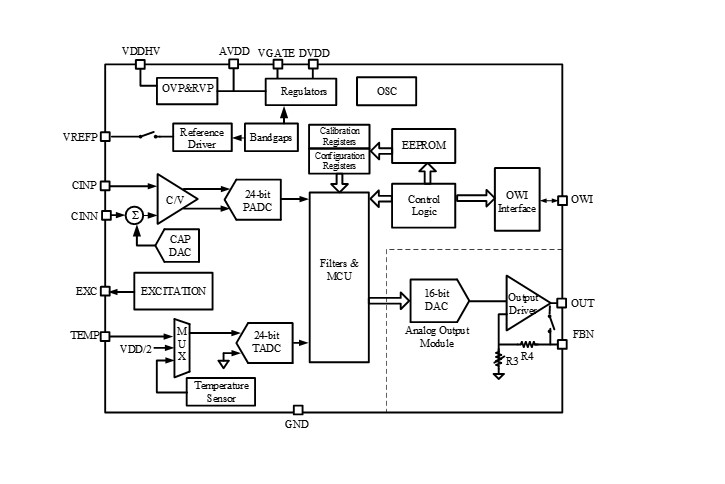

Functional Block Diagram
