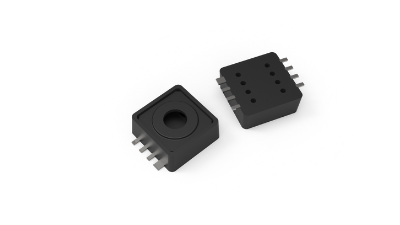

The NSPAS5 series is an automotive-grade integrated corrosion-resistant absolute pressure sensor. This product uses automotive-grade signal conditioning chips to calibrate and compensate the output of MEMS cores, converting pressure signals ranging from 10kPa to 400kPa into analog output signals with a customizable output range of 0~5V. While ensuring the excellent reliability of the product, integrating and packaging two chips greatly reduces the package size. At the same time, the conditioned product can provide standard output within a precise range over a temperature range, eliminating the need for customers to calibrate sensors and accelerating the process of product development and mass production. The product meets AEC-Q100 reliability standards.
Product Features
• Wide operating temperature range: -40°C~130°C
• High accuracy in full temperature range:
• Better than +1%F.S. in the range of -20°C~115°C
• Better than +1.5%FS.in the range of -40°C~130°C
• Support -24V to 28V over voltage and reverse voltage protection
• Fluorinated gel protection, compatible with oil and gas environment
• Corrosion-resistant, suitable for harsh environments such as exhaust systems.
• Faster response time less than 0.8ms
• Support absolute output/ratio-metric output, with output curve customized
• Disconnection detection, output clamping, output alarm function
• Pressure range:10kPa~400kPa, which can be customized
• AEC-Q100 qualified
• Range can be customzied
For more product information, please contact us.
