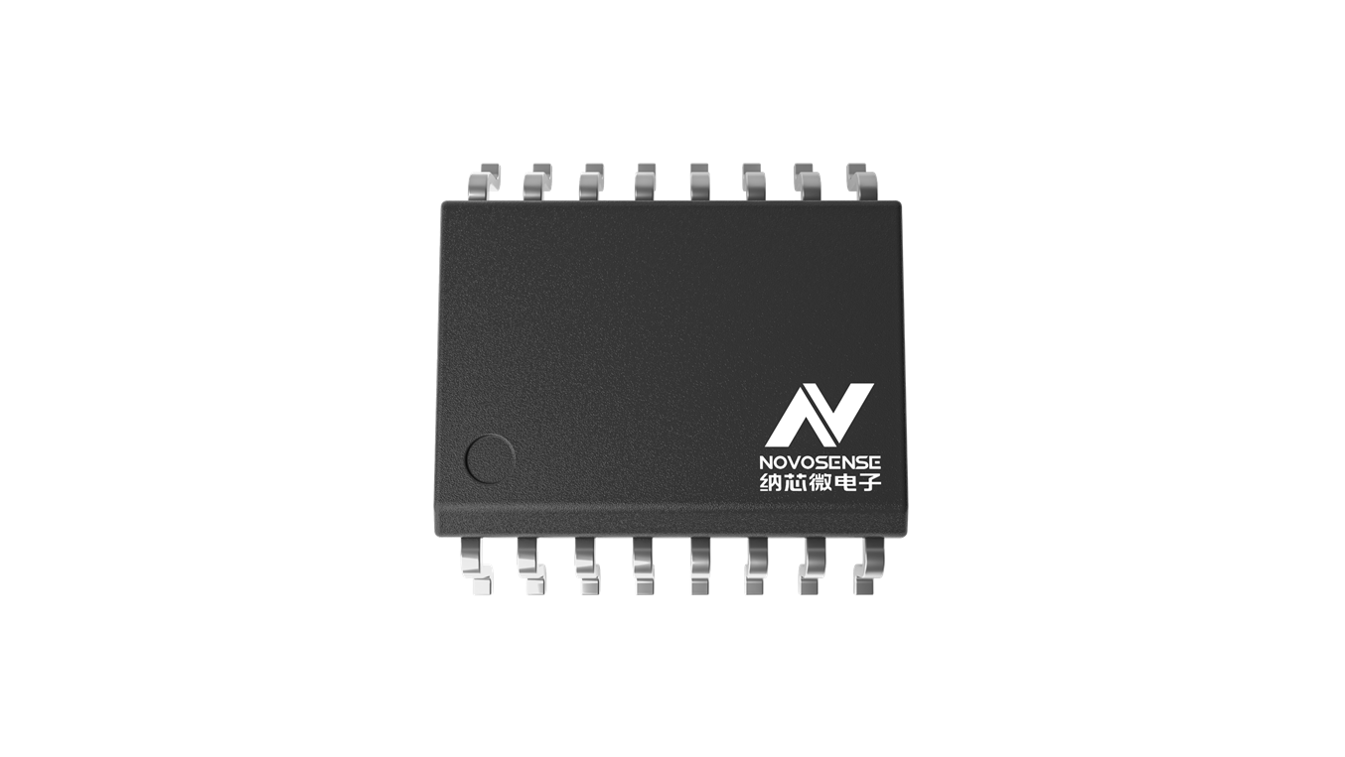

Four-channel digital isolator with integrated isolated DC-DC converter

NSIP884x series is a two-channel digital isolator with integrated isolated DC-DC power supply. The isolated DC-DC power supply can provide up to 500mW of output power on the on-chip transformer. The feedback PWM signal is sent to the primary side by a digital isolator based on NOVOSENSE capacitance isolation technology. Highly integrated solutions simplify system design and improve reliability. The products are UL1577-qualified for safety, support an isolation voltage of 4500Vrms, and feature improved electromagnetic immunity and low radiation. The data rate of this series of products is as high as 150Mbps, and the common mode transient immunity (CMTI) is as high as 150kV/us. In addition, 5V to 5V,5V to 3.3V,3.3V to 3.3V conversion modes are allowed, and the output voltage can be set through SEL.

Product Features

•  Up to 4500Vrms insulation voltage

•  Power supply voltage: 3.3V to 5.5V

•  5V to 5V, 5V to 3.3V, supporting 100mA load current

•  Over current and over heat protection

•  Data rate: DC to 150Mbps

•  High CMTI: 150kV/us

•  Propagation delay: <15ns

•  High system level EMC performance: Enhanced system level ESD, EFT, and surge immunity

•  Operation temperature: -40℃~125℃

Safety Certificate

• UL1577 qualified: 4.5kVrms for 1 min.

• CQC qualified: Conform to GB4943.1 -2011

• CSA qualified: Components conform to 5A

• VDE qualified: DIN V VDE V 0884-11:2017-1


•Industrial automation system

•Isolated SPI, RS232, RS485

•Universal Multi-Channel Isolator

Functional Block Diagram
