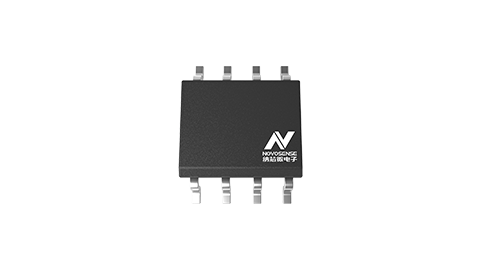

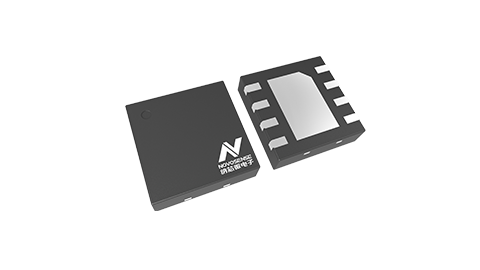

Automotive Fault Protected High-Speed CAN FD Transceiver

The NCA1051A-Q1 is a high-speed CAN transceiver that provides an interface between a Controller Area Network (CAN) protocol controller and the physical two-wire CAN bus. The NCA1051A-Q1 implements the CAN physical layer as defined in ISO 11898-2:2016 and SAE J2284-1 to SAE J2284-5. This implementation enables reliable communication in the CAN FD fast phase at data rates up to 5 Mbit/s. The NCA1051A-Q1 provides thermal protection and transmit data dominant time out function.

Product Features

  • Fully compatible with the ISO11898-2 standard

  • Ideal passive behavior to the CAN bus when the supply voltage is off

  • I/O voltage range supports 3.3V and 5V MCU

  • Power supply voltage

  • VIO: 2.8V to 5.5V

  • VCC: 4.5V to 5.5V

  • Bus fault protection of -58V to +58V

  • Bus common-mode voltage of -30V to +30V

  • Transmit data (TXD) dominant time out function

  • Over current and over temperature protection

  • Data rate: up to 5Mbps

  • Low loop delay: <250ns

  • Operation temperature: -40℃ to +125℃

  • AEC-Q100 qualified for automotive, Grade 1

  • RoHS & REACH compliant

Application

  • CAN bus standards such as CANopen, DeviceNet, NMEA2000, ARNIC825, ISO11783 and CANaerospace

  • Highly loaded CAN networks down to 10 kbps networks

  • Automotive gateway

  • Body control modules

  • Advanced Driver Assistance Systems (ADAS)

  • Infotainment system

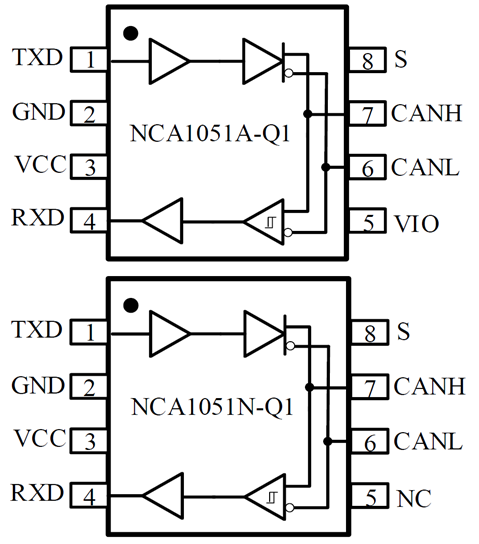

Functional Block Diagram


For more product information, please contact us.
